Highlights

BEST IN CLASS FOR

  • WOOD BASED PANELS:
    MDF/HDF

MAIN FEATURES

  • Compact, easy to position and suitable for installation on all types of lines
  • Collimated and suitably screened X-ray beam
  • Designed to minimize scattered radiation
  • Extremely safe to use thanks to the application of advanced technology
  • Non-invasive measurement
  • Accurate board density profile analysis

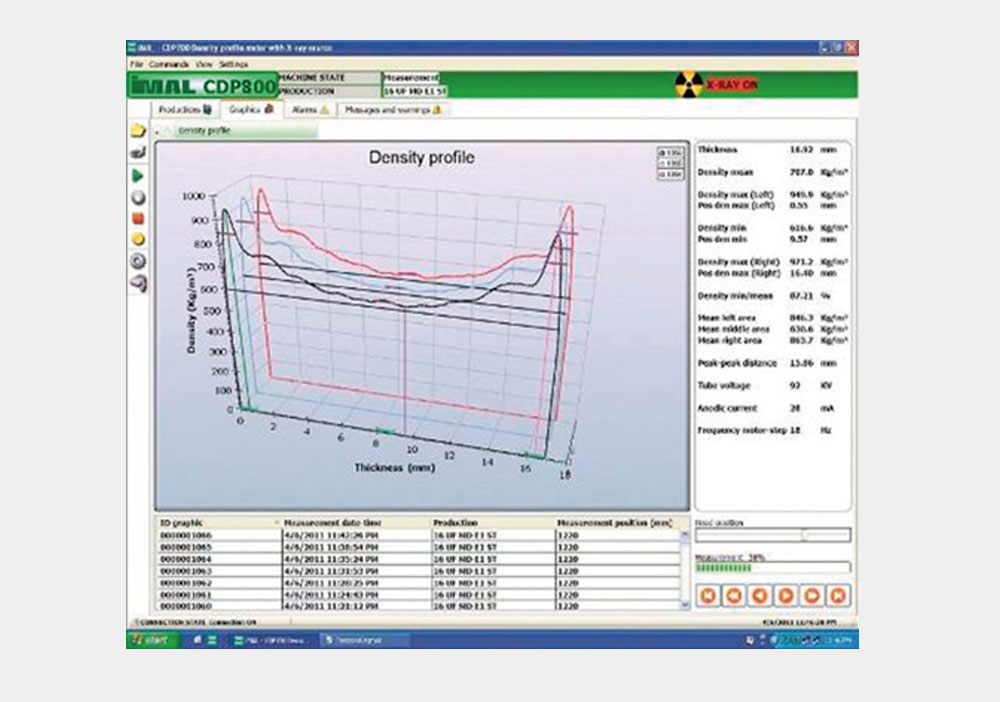

  • On-line measurement and graphic illustration of the density profile
  • 2D and 3D visualization with the possibility to compare graphs
  • Maintenance may be carried out on line without interrupting production
  • Production may be changed without the need to change any of the machine parameters
  • Incorporated database for statistical analysis and storing the density profiles
  • Test results swiftly compared with other laboratory testing equipment
  • The device is calibrated automatically, no operation required for calibration
  • Network linking possible with different kinds of PLC (Siemens, Allen Bradley, Beckhoff, etc …) based on different protocols such as TCP/IP, OPC UA, Ethercat, etc …

ADVANTAGES

  • Real time monitoring of production quality nd press performance
  • Density profile measured on line after multi-opening press line for the first time ever
  • Extremely economical and accurate mobile analyser
  • Special algorithm used, patented application
  • Reduced start up times
  • Optimising of the amount of material used in the production process
  • No isotopes: no radiogenic emission without power supply

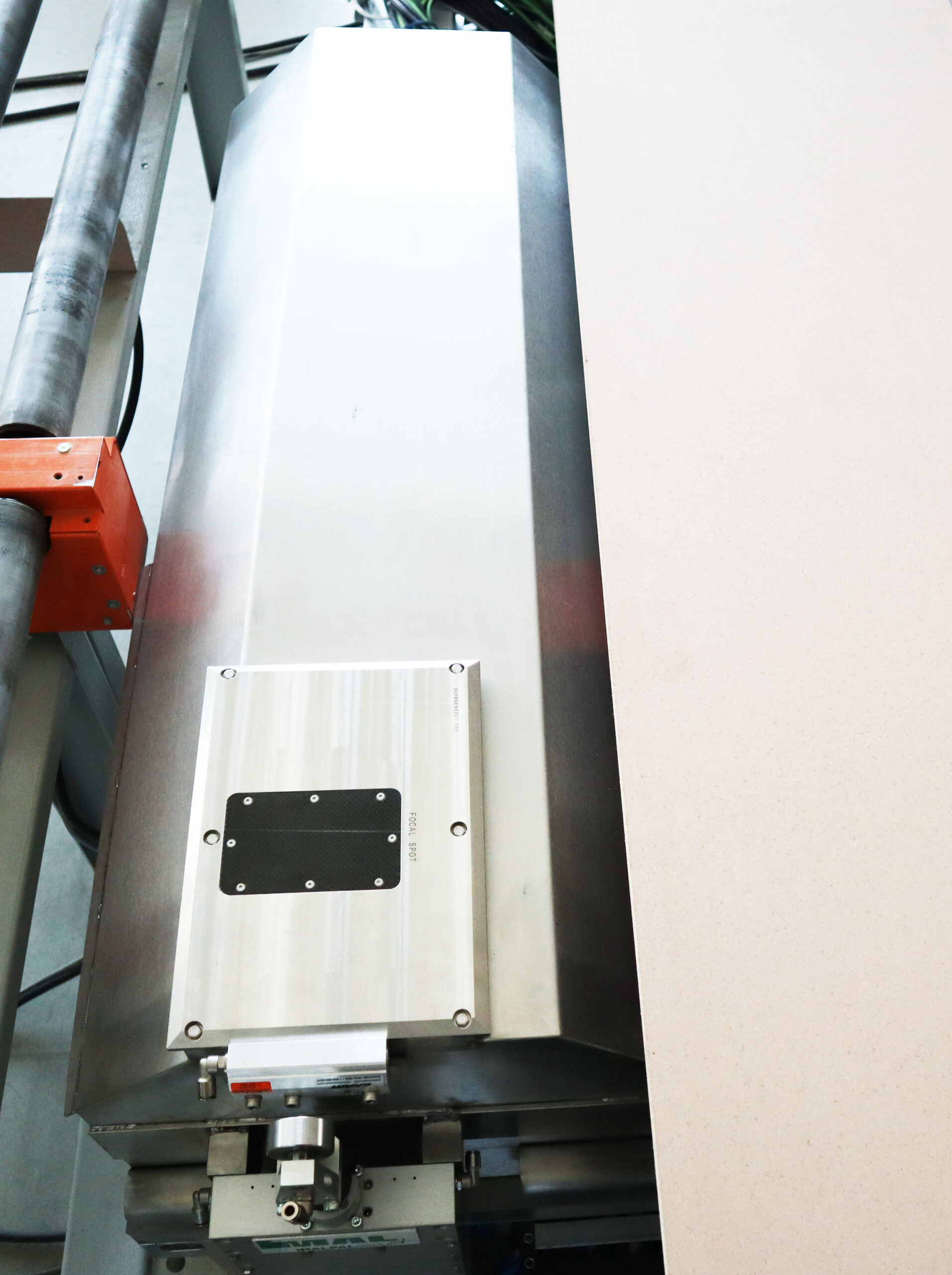

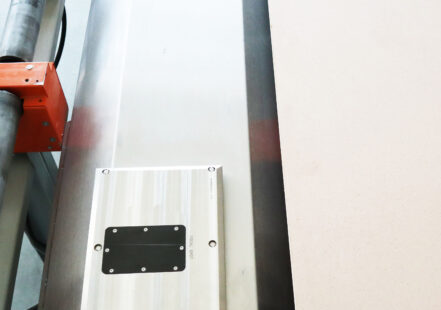

  • The entire device is installed below the board
  • Fine-tuned and workshop calibrated prior to shipment.
