Highlights

BEST IN CLASS FOR:

  • WOOD BASED PANELS:
    MDF/HDF
    PB/SPB
    INSULATION BOARDS
  • PRESSED WOOD PACKAGING:
    PALLET BLOCKS
  • PELLETS & ENERGY:
    WOOD PELLETS AND BLACK PELLETS
    LIME
  • WOOD RECYCLING AND WASTE TREATMENT:
    WASTE

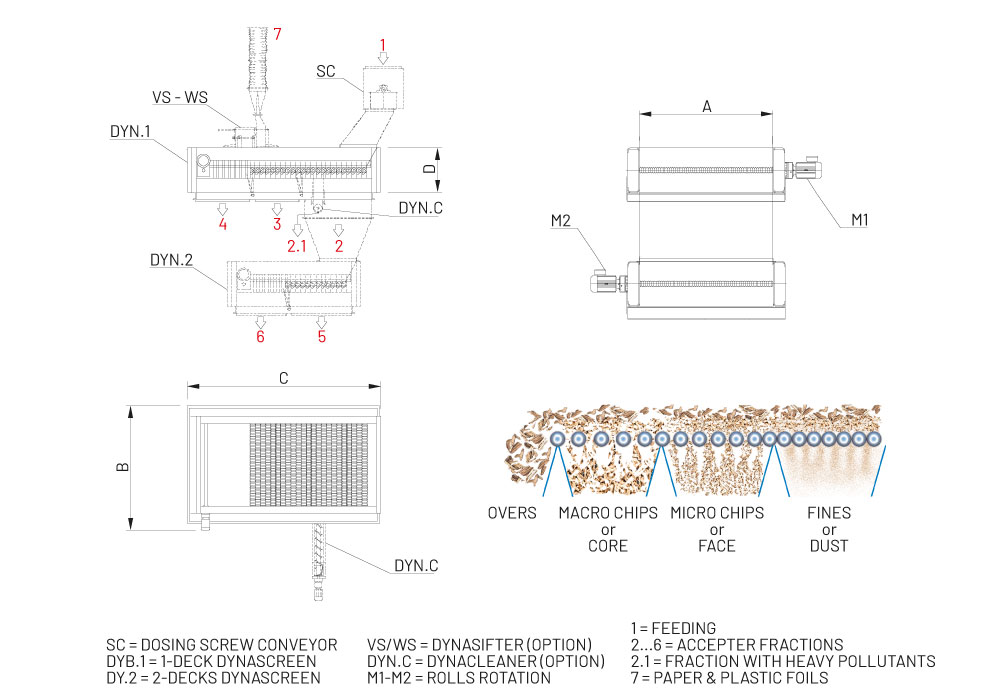

TECHNICAL FEATURES

  • Feeding conveyor for distribution across
  • W-Rolls to remove very fine and dusty material
  • V-Rolls to remove flakes and micro chips
  • D-Rolls to remove oversize pieces
  • Chrome plating or nitriding of W & V profiles
  • Two side bearings and transmissions
  • Devices for setting gaps easily and freely
  • Single or double screening deck/s
  • Discharge flap for each fraction, to be freely positioned
  • Separation from 2 to 5-6 fractions
  • Integrated suction unit to remove dust, fiber, paper and plastic foils, etc.
  • VS system for intermediate suction
  • WS system for final suction
  • Devices for free setting of suction speed
  • Integrated system for removal of a minor fraction highly contaminated from heavy pollutants
  • Specialized shape of roll profile
  • Extracting screw conveyor for the polluted fraction
  • Patented

BENEFITS

  • Zigzag channeling effect from interlocking W & V rolls: aligns the flow along the W & V gaps – improves particle vibration and screening efficiency
  • W & V roll profiles: ensures better calibration of particle thickness – ensures better calibration of particle length
  • VS & WS Dynasifter: easy application any time – excellent dedusting and removal of light pollutants such as fiber, paper and plastic foils, etc.
  • All gaps and discharge flaps freely adjustable: enables easy changing of fraction size – enables easy variation of number of fractions
  • Absolutely free from plugging and/or blockages
  • Very easy setting of screening parameters
  • High efficiency and reliability
  • Low maintenance
