Highlights

BEST IN CLASS FOR:

  • WOOD BASED PANELS:
    MDF/HDF
    PB/SPB
  • PRESSED WOOD PACKAGING:
    PALLET BLOCKS
  • PELLETS & ENERGY:
    WOOD PELLETS AND BLACK PELLETS
    LIME
  • WOOD RECYCLING AND WASTE TREATMENT:
    WASTE

TECHNICAL FEATURES

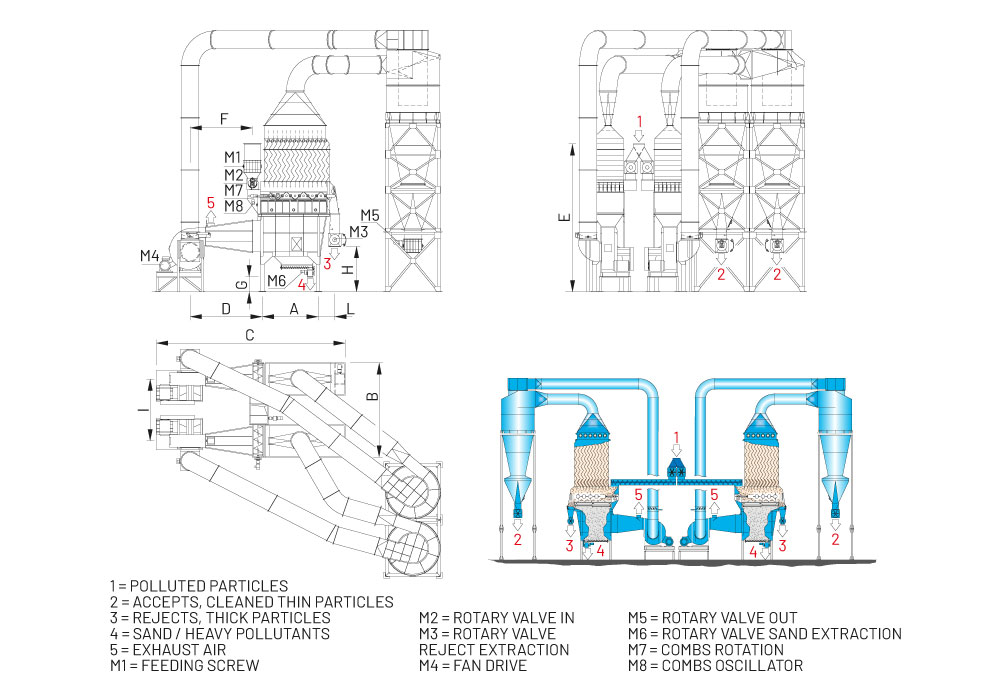

  • Classifying chamber complete with: infeed system (from model 3.1) – horizontal fluidizing screen – comb system for moving thick particles and improving separation of heavy pollutants – zigzag channels – suction hopper connected to the cyclone – outfeed device for rejected particles – discharge system for heavy pollutants
  • Fan
  • Cyclone for accepted particles
  • AF – Fire extinguishing system
  • AE – Explosion protection system

BENEFITS

  • High efficiency in classification
  • The turbulence generated by the zigzag channels ensures the thick-large (jumbo) particles to drop (that are improperly sucked and classified as accepts by other selectors)
  • Selection limit freely adjustable
  • Unbeatable removal of heavy pollutants
  • Highly reliable
  • Low maintenance
