Highlights

BEST IN CLASS FOR:

  • WOOD BASED PANELS:
    MDF/HDF
    PB/SPB
    OSB/LSB/FOSB
    INSULATION BOARDS
  • PRESSED WOOD PACKAGING:
    PALLET BLOCKS
  • PELLETS & ENERGY:
    WOOD PELLETS AND BLACK PELLETS

TECHNICAL FEATURES

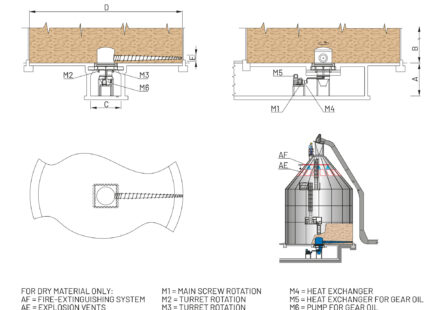

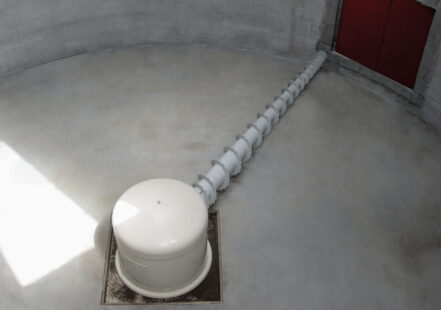

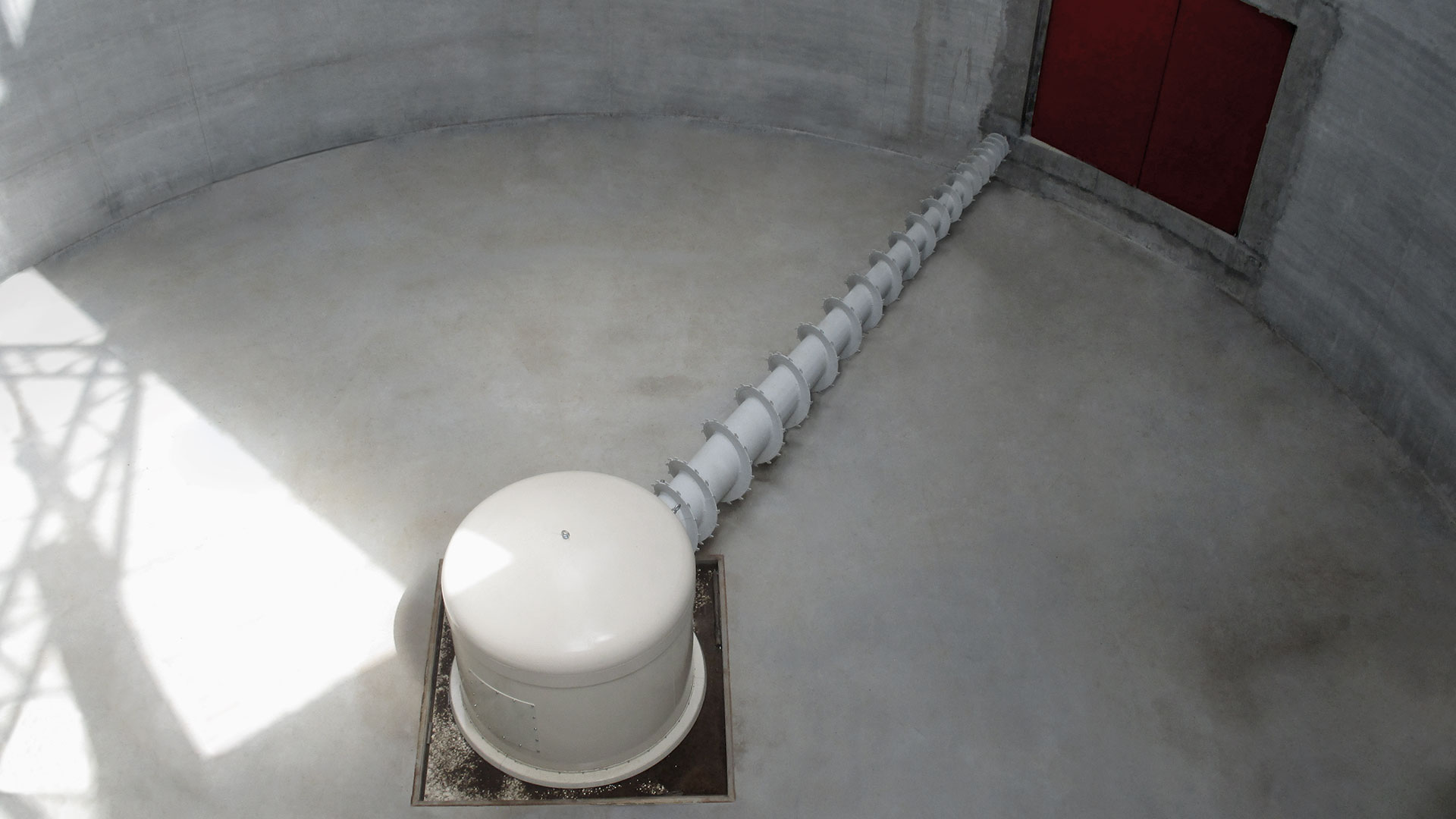

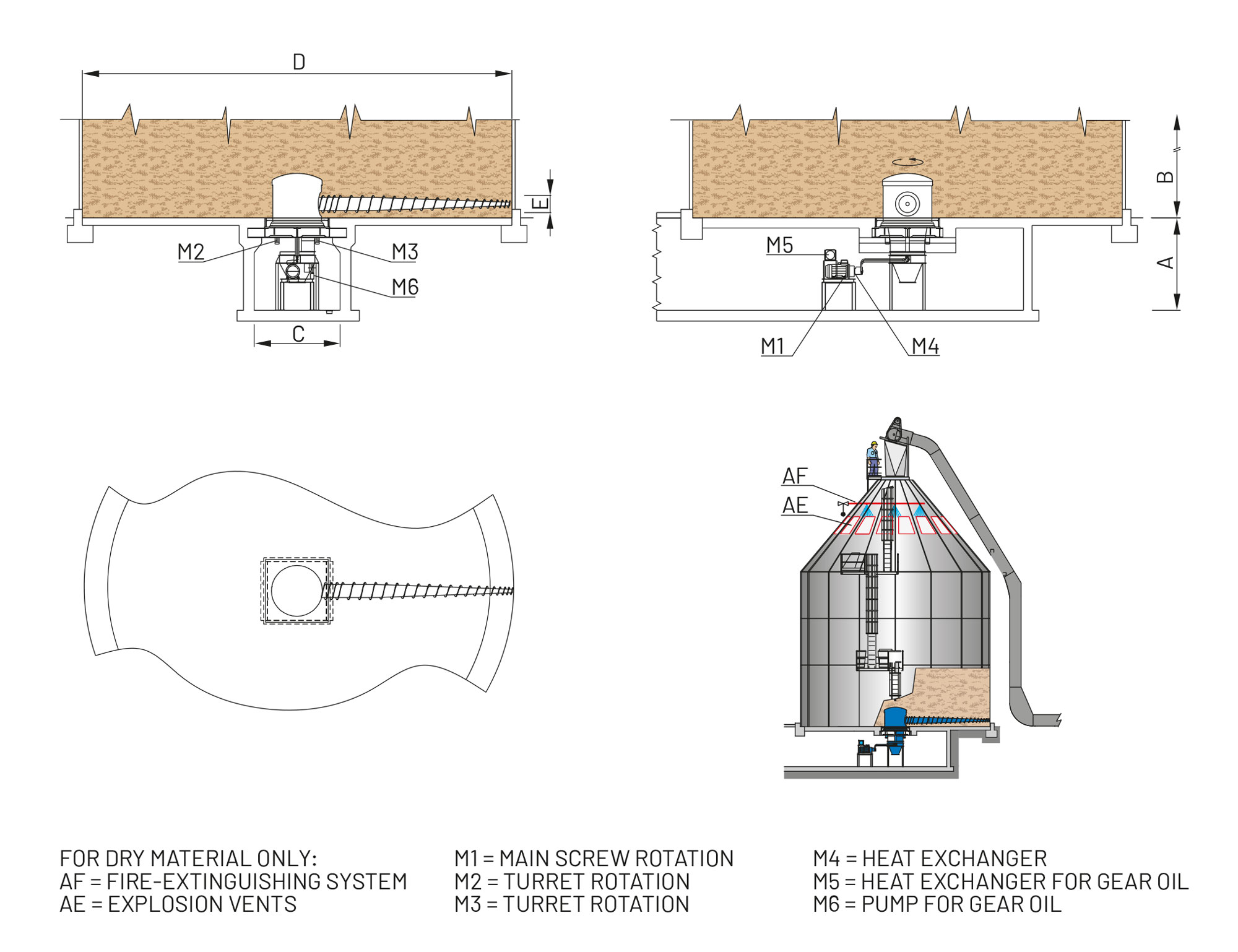

  • Rotating turret mounted in the middle of the silo bottom and connected to a fixed structure through a slewing bearings
  • Turret rotations by means of two hydraulic motors
  • Extraction screw embossed and connected to the turret structure by means of a slewing bearings
  • Extraction screw based on pro-gressive pitch and fitted with peripheral milling-teeth
  • Extraction screw ro-tations by means of hydraulic motor
  • Hydraulic power unit located close to of the extractor screw
  • Cooling circuit of the extraction screw hydraulic motor lubrication
  • Automatic grease lubrication circuit of slewing bearings

BENEFITS

  • Suitable for: Large silos, up to 25 m diameter – Materials difficult to extract, e.g. wet-fibrous-compact
  • Easy inspection and maintenance
  • Excellent mixing of the extracted material
  • High efficiency and reliability
  • Low maintenance
