Highlights

BEST IN CLASS FOR

  • WOOD BASED PANELS:
    PB/SPB
    OSB/LSB/FOSB
    MDF/HDF
    PLYWOOD
    LVL

MAIN FEATURES

  • Measurement is not influenced by vibration or board undulation
  • Board thickness measured non stop
  • Reliable, complete and accurate measurements with good repeatability
  • The board is not damaged in any way by the measurement
  • Fast moving system to ensure accurate measurement even with high-speed cycles

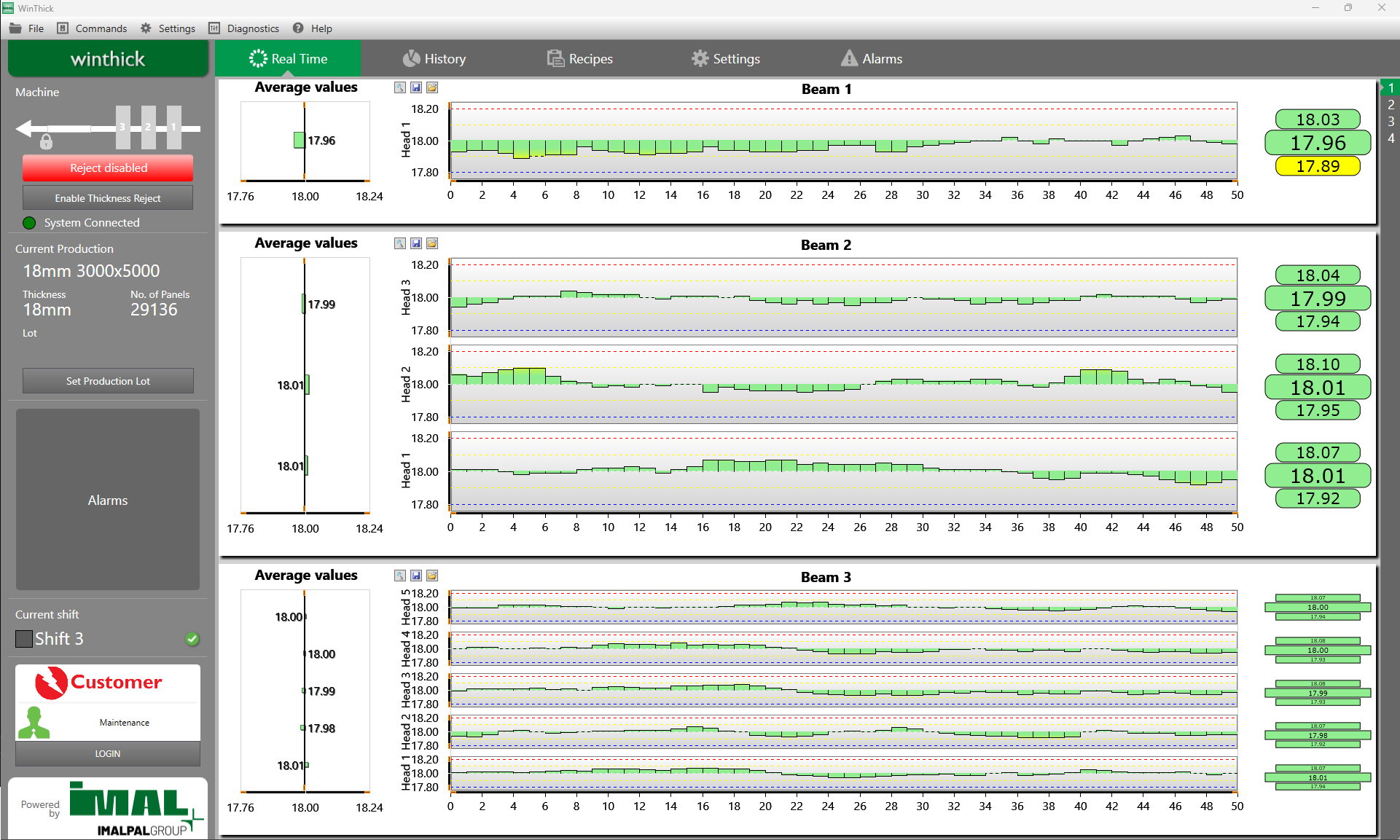

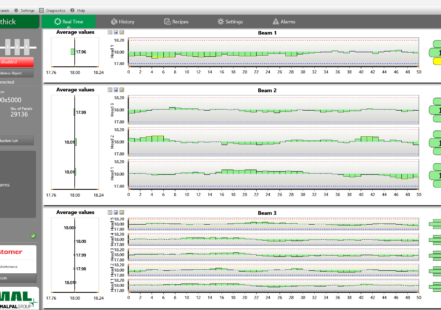

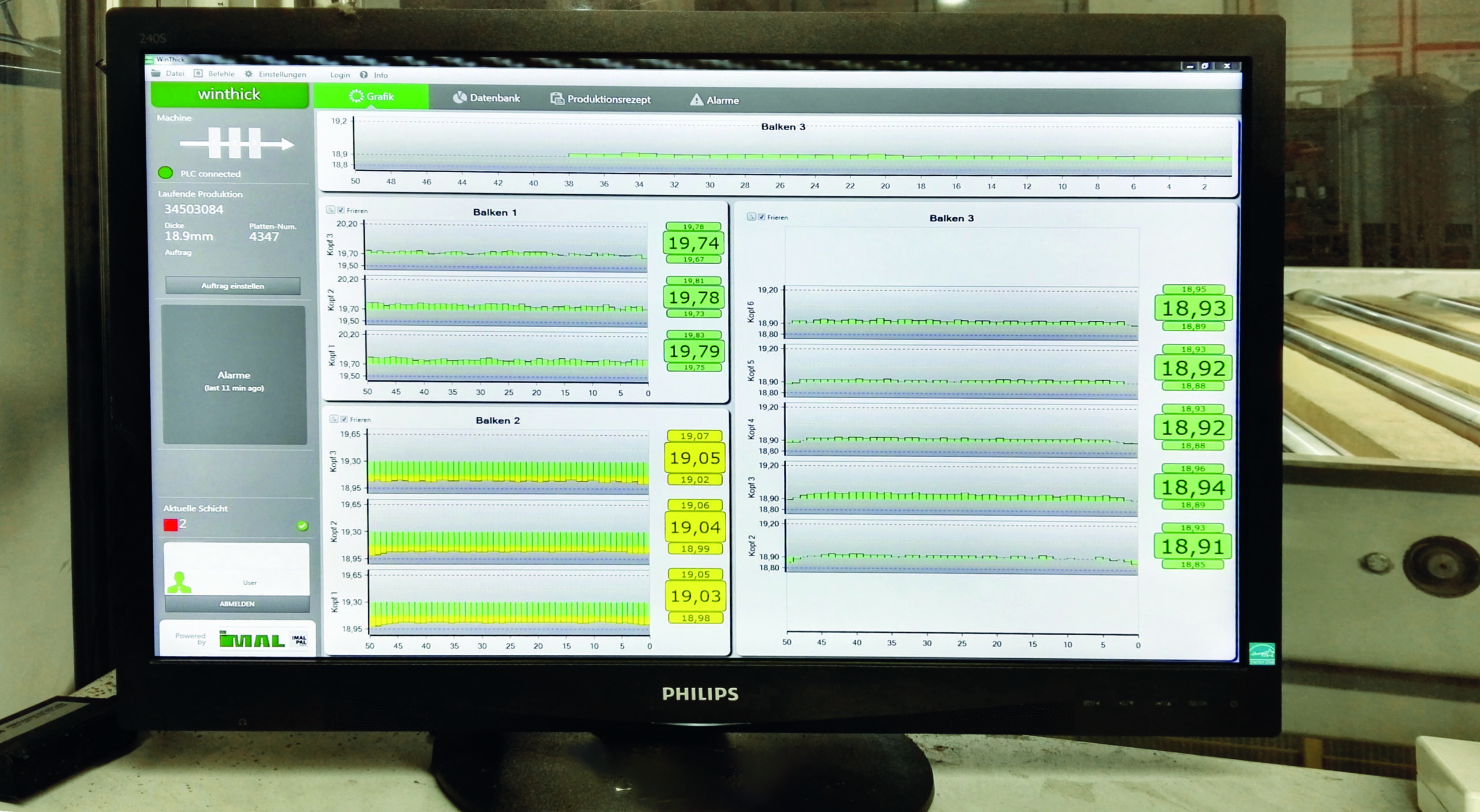

  • Incorporated database to store the measurement reports, for statistical analysis and graph printouts

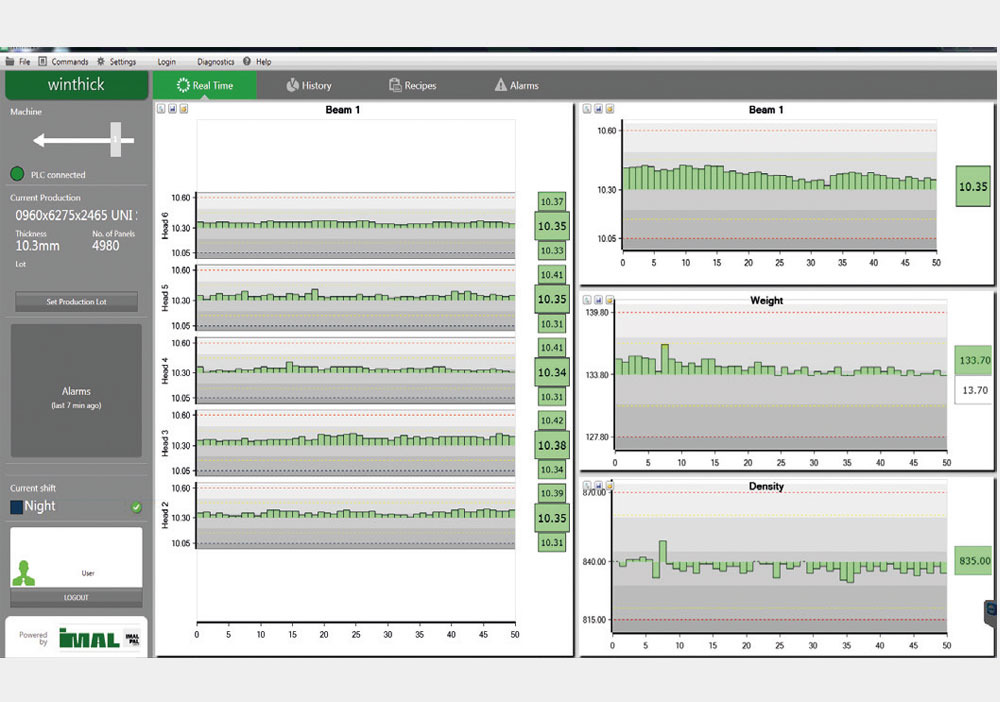

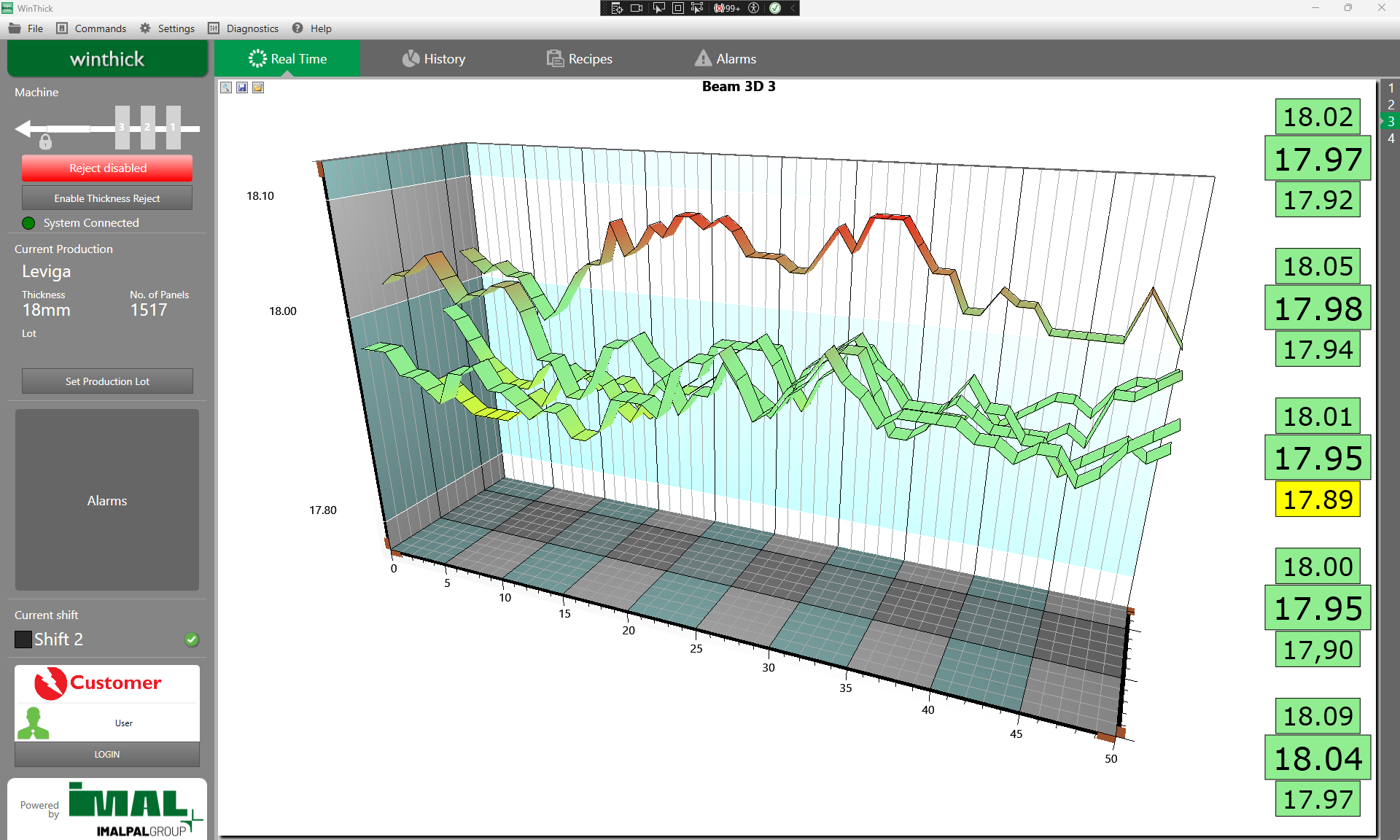

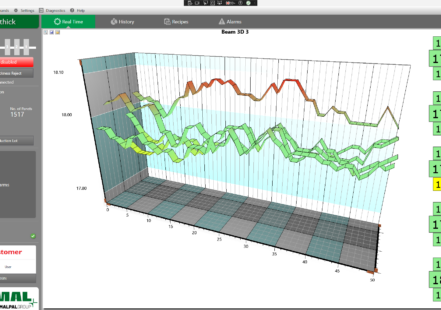

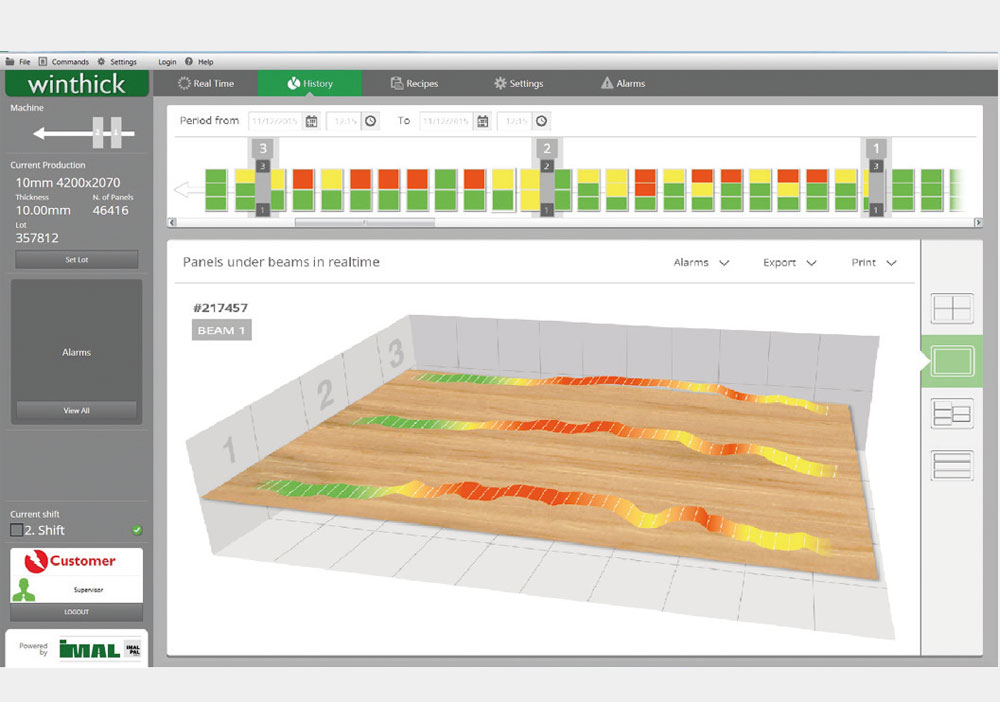

  • Numerous graphs available such as: boards produced, pressings effected, average thickness, weight and density, for error search and forming line control etc
  • Network linking possible with different kinds of PLC (Siemens, Allen Bradley, Beckhoff, etc …) based on different protocols such as TCP/IP, OPC UA, Ethercat, etc
  • Normally installed after single opening, multi-opening or continuous presses.

ADVANTAGES

  • Extremely accurate measuring ability
  • Quick and easy to install
  • Simple to use
  • Little routine maintenance needed
  • Self-calibrating system for thickness and weighing scale (when present).
