Highlights

BEST IN CLASS FOR

  • WOOD BASED PANELS:
    PB/SPB
    MDF/HDF

MAIN FEATURES

  • Accurate measurement of the true dimensions
  • Elevated repeatability
  • Test performed rapidly
  • Measurement easily conducted
  • Simulation of any number of sieves
  • Simple to use
  • Suitable for application on line (optional)

WORKING PRINCIPLE

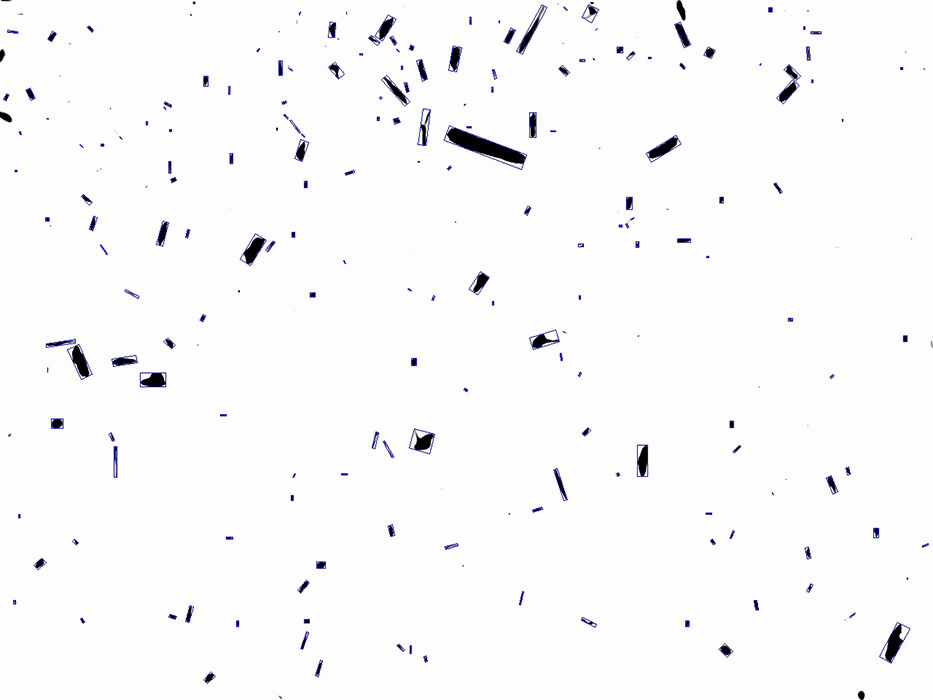

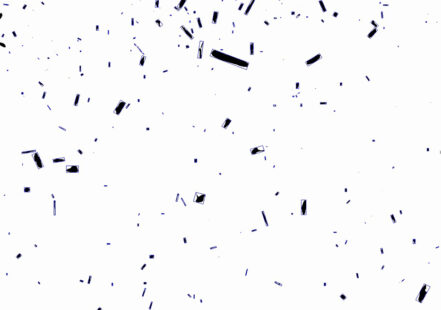

The application of optical technology permits an accurate measurement of the dimensions of the fibers (FIBERCAM100) and particles (SCREENCAM100), without ruining the materia in any way (as happens with water systems), with elevated repeatability and rapid response times. The analyzing software, in conjunction with the numerous images taken, calculates the actual length (extension) and width of the fibers/particles even in cases where they are laid one over the other. Denser ±umps, on the other hand, are not analyzed.

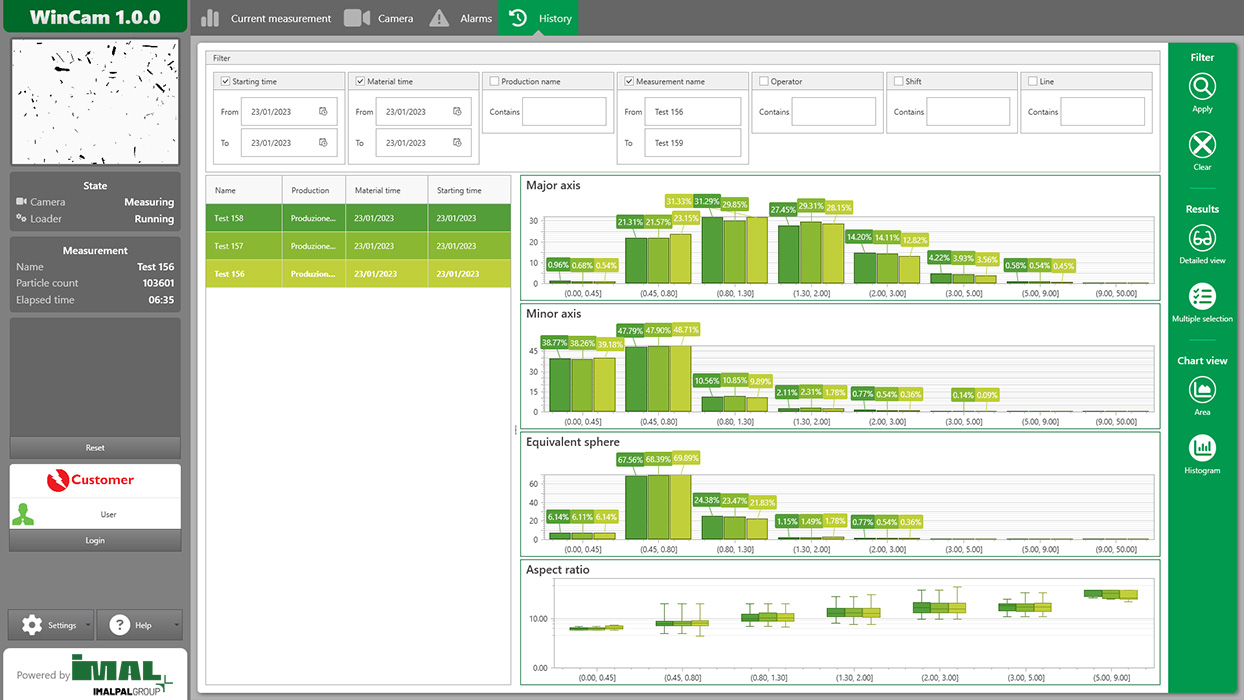

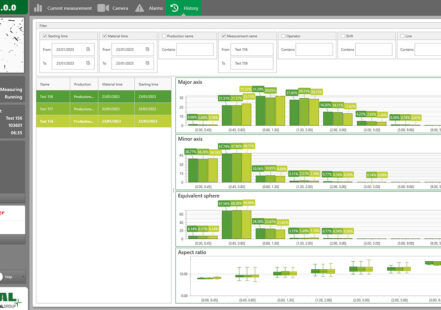

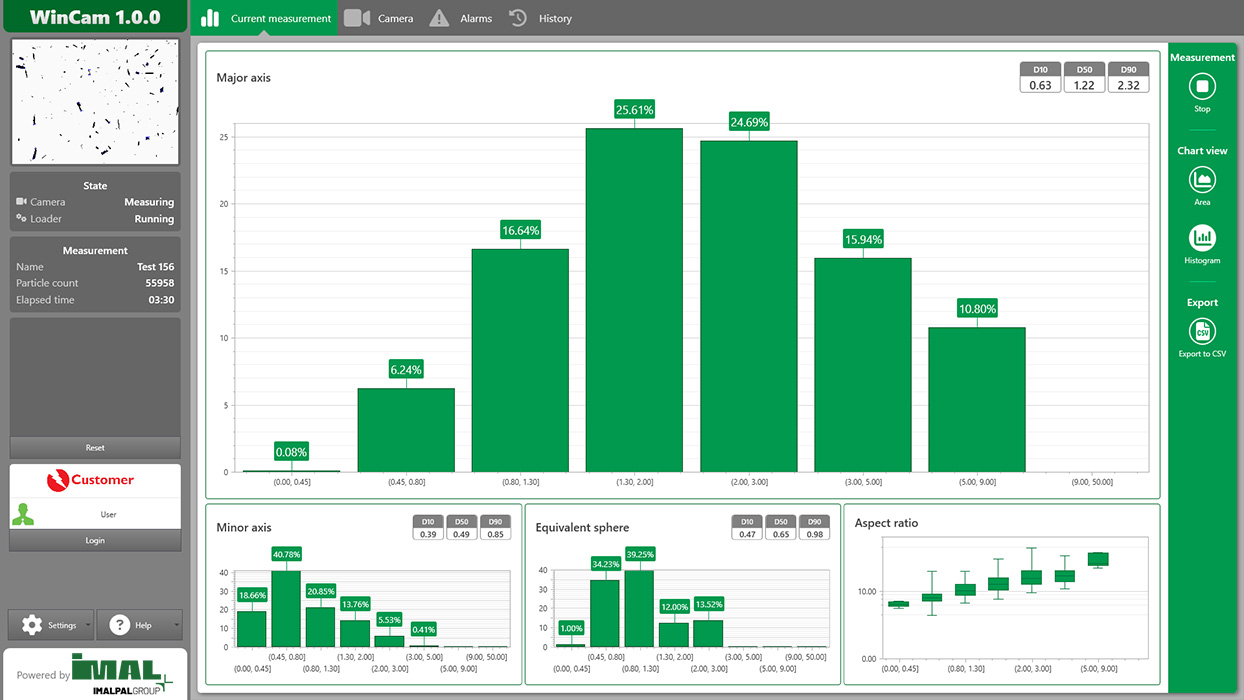

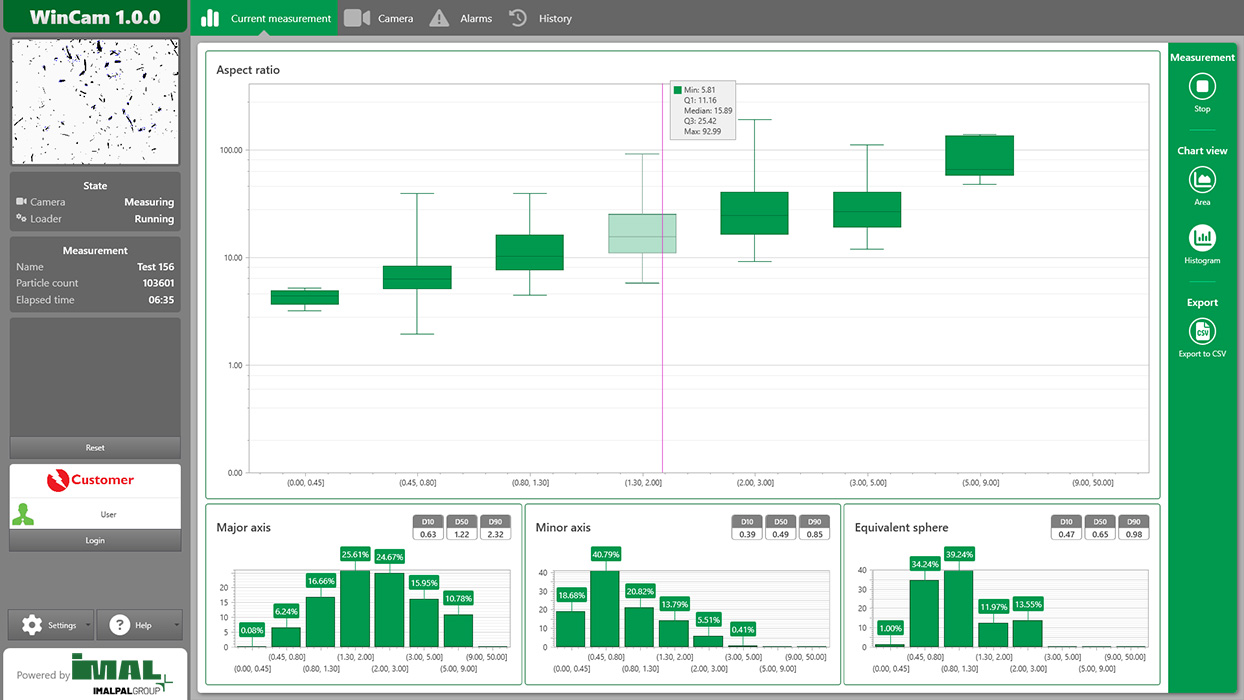

The result of each test is stored in the local database and may be consulted over the company network. In addition, the test results may be printed with the figures and the graph showing the granulometry distribution.
The impartial verification of test repeatability and/or comparison with previous tests, is made by placing one graph over the other by means of a simple set of menu choices.
Automatic cleaning system with connection to external vacuum cleaner.
Are available also the online versions for measuring and processing the principal properties of the fibres/particles directly in the process, hence the measurements are virtually taken real time, it takes just about 3-5 seconds to reach the scanning unit.
