Highlights

BEST IN CLASS FOR

  • WOOD BASED PANELS:
    PB/SPB
    OSB/LSB/FOSB
    MDF/HDF
    PLYWOOD
    LVL

MAIN FEATURES

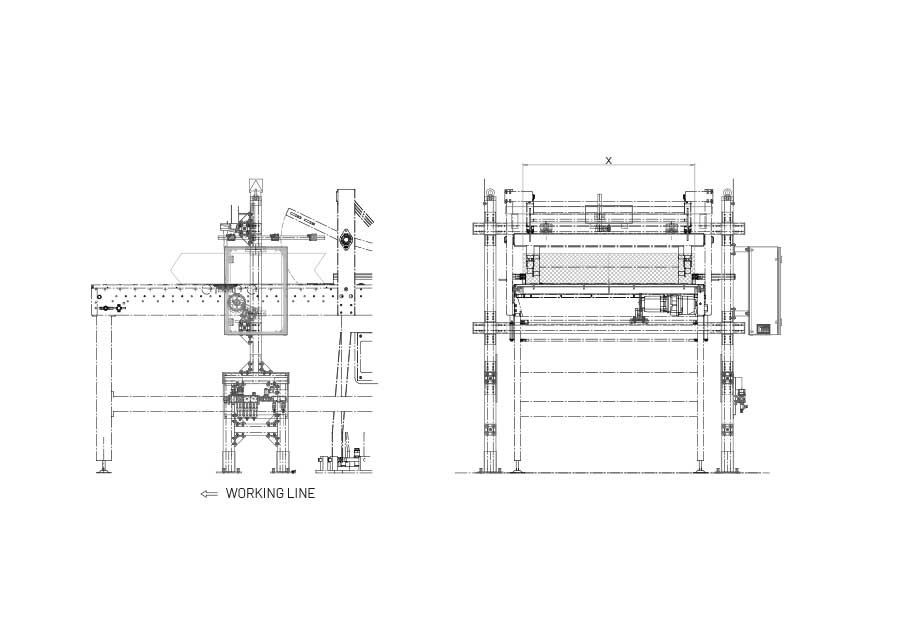

  • Measurement is not influenced by vibration or board undulation if the sensors are mounted on the top and bottom of the beam (TMLD, differential measurement)
  • Sensors can be mounted on the top of the beam only (TML option) if the board travels along a belt or if there are no particular problems with vibration
  • Board thickness measured non-stop
  • Reliable, complete and accurate measurements with good repeatability
  • Blowers/sprayers to keep the sensors clean
  • Side measuring heads can be disabled when producing narrow boards
  • Electronic weight transducers for the weighing scale easily and rapidly installed on the existing conveyor
  • Incorporated database to store the measurement reports, for statistical analysis and graph printouts
  • Numerous 3D and 2D graphs available such as: boards produced, pressings effected, average thickness, weight and density, for error search and forming line control etc
  • Network linking possible with different kinds of PLC (Siemens, Allen Bradley, Beckhoff, etc …) based on different protocols such as TCP/IP, OPC UA, Ethercat, etc
  • Normally installed after single opening, multi-opening or continuous presses

ADVANTAGES

  • Extremely accurate measuring ability
  • Quick and easy to install
  • Simple to use
  • Low maintenance
  • Auto-tuning thickness calibration system using a set of sample weights designed by IMAL or on the basis of customer requirements
  • Self-calibrating system for weighing scale (when present)
