TECHNICAL FEATURES

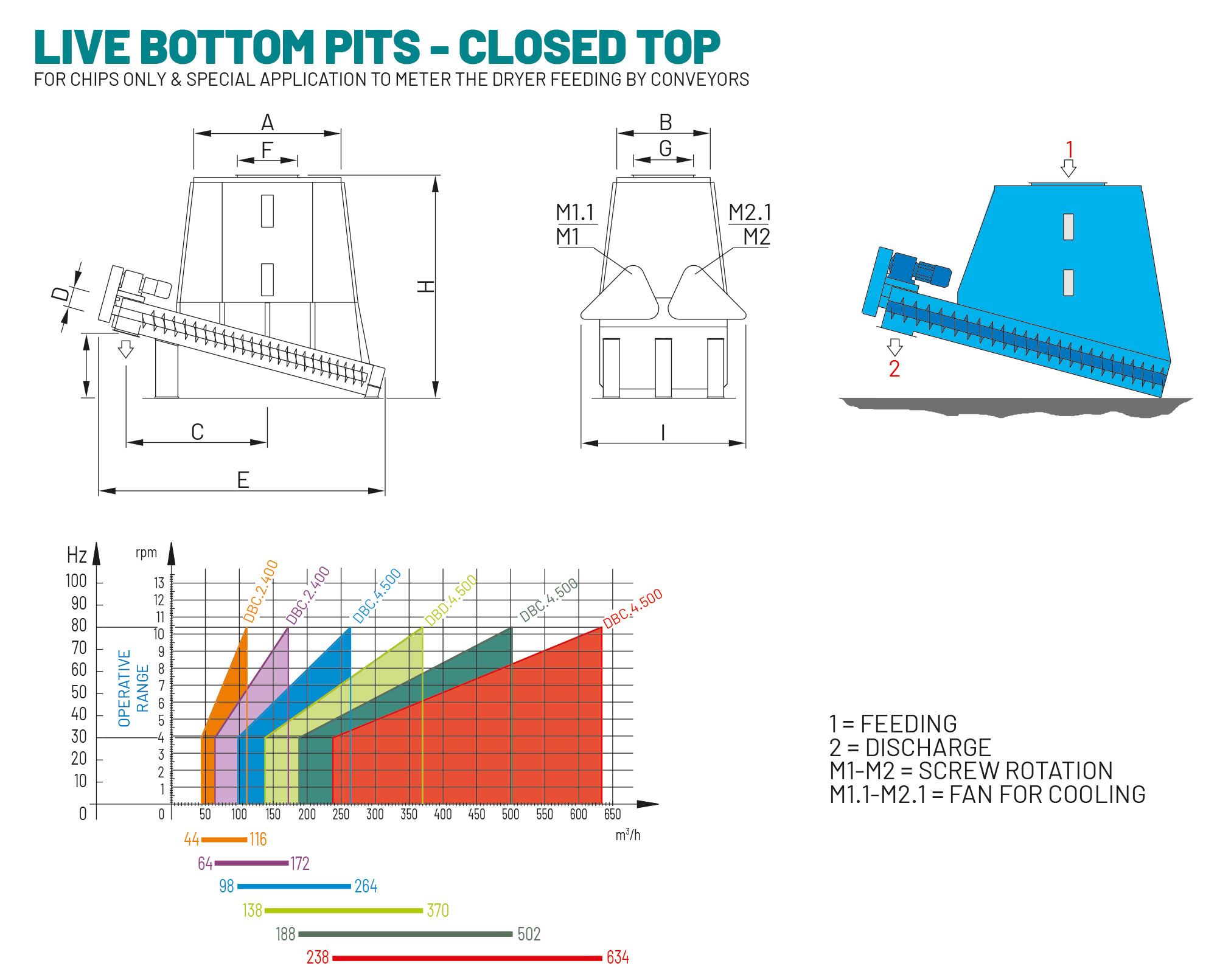

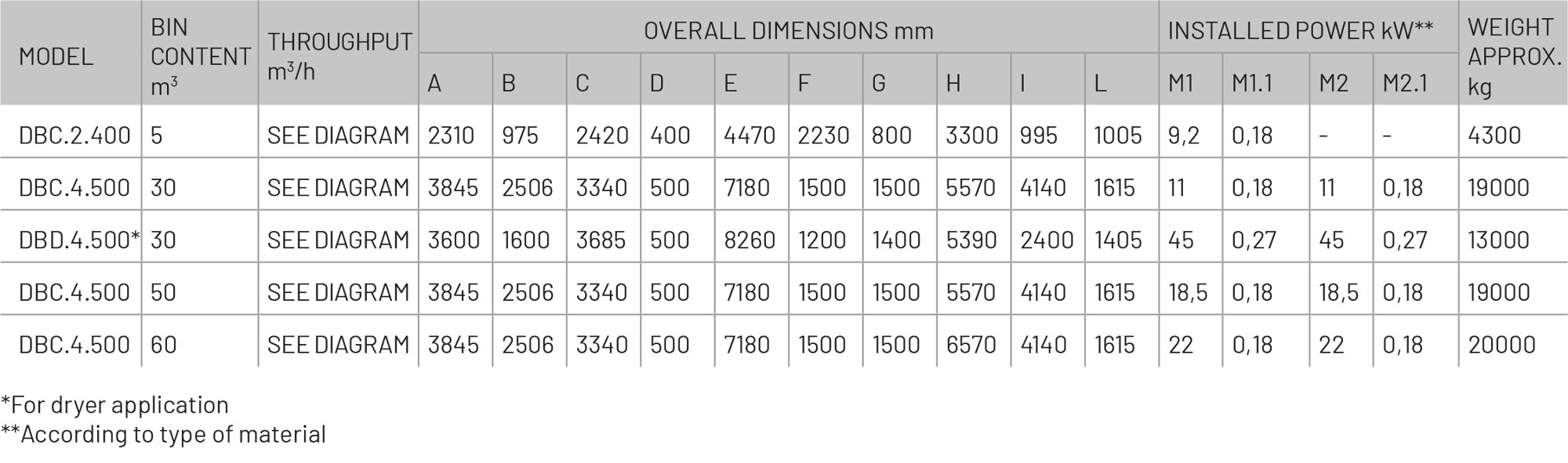

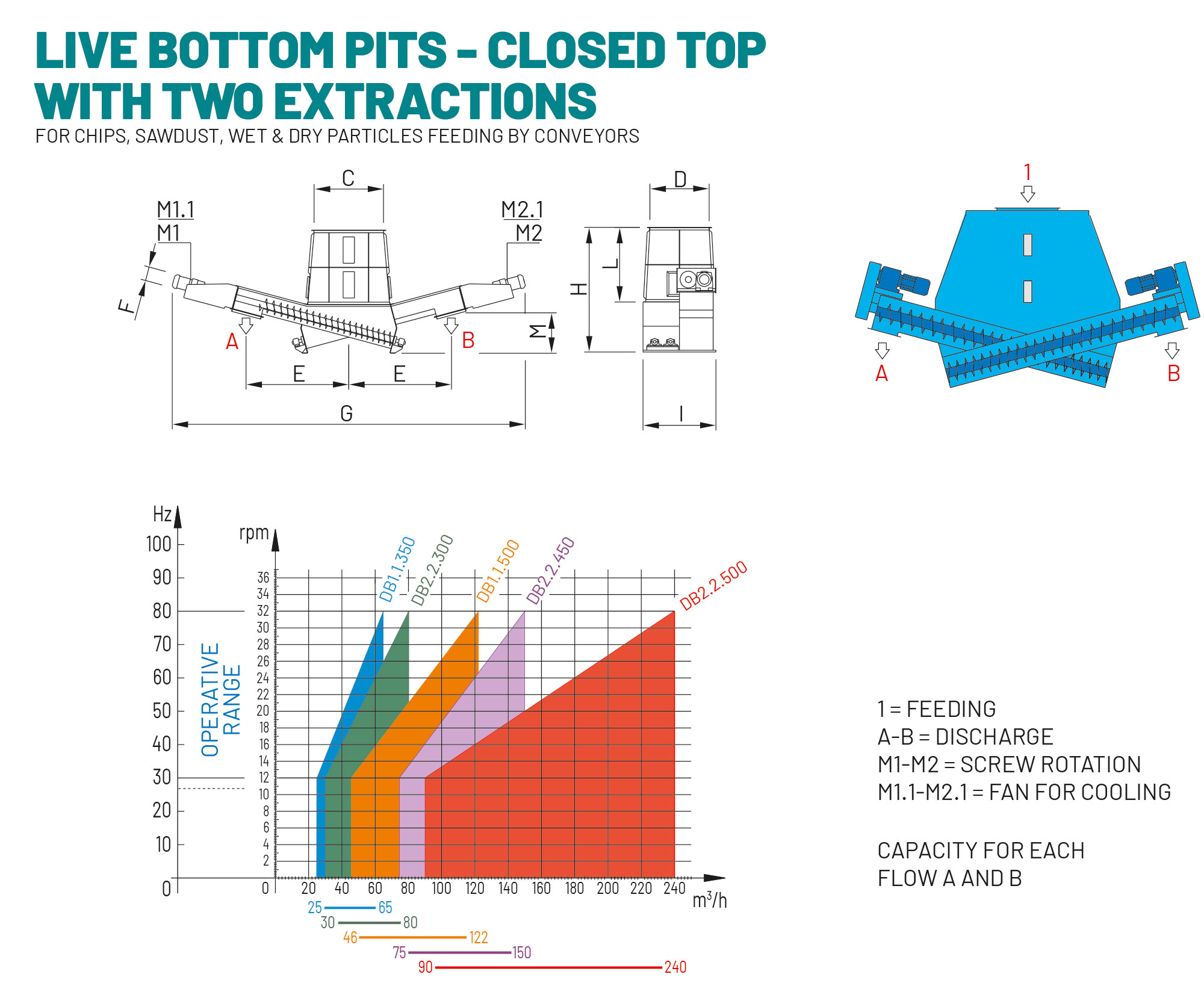

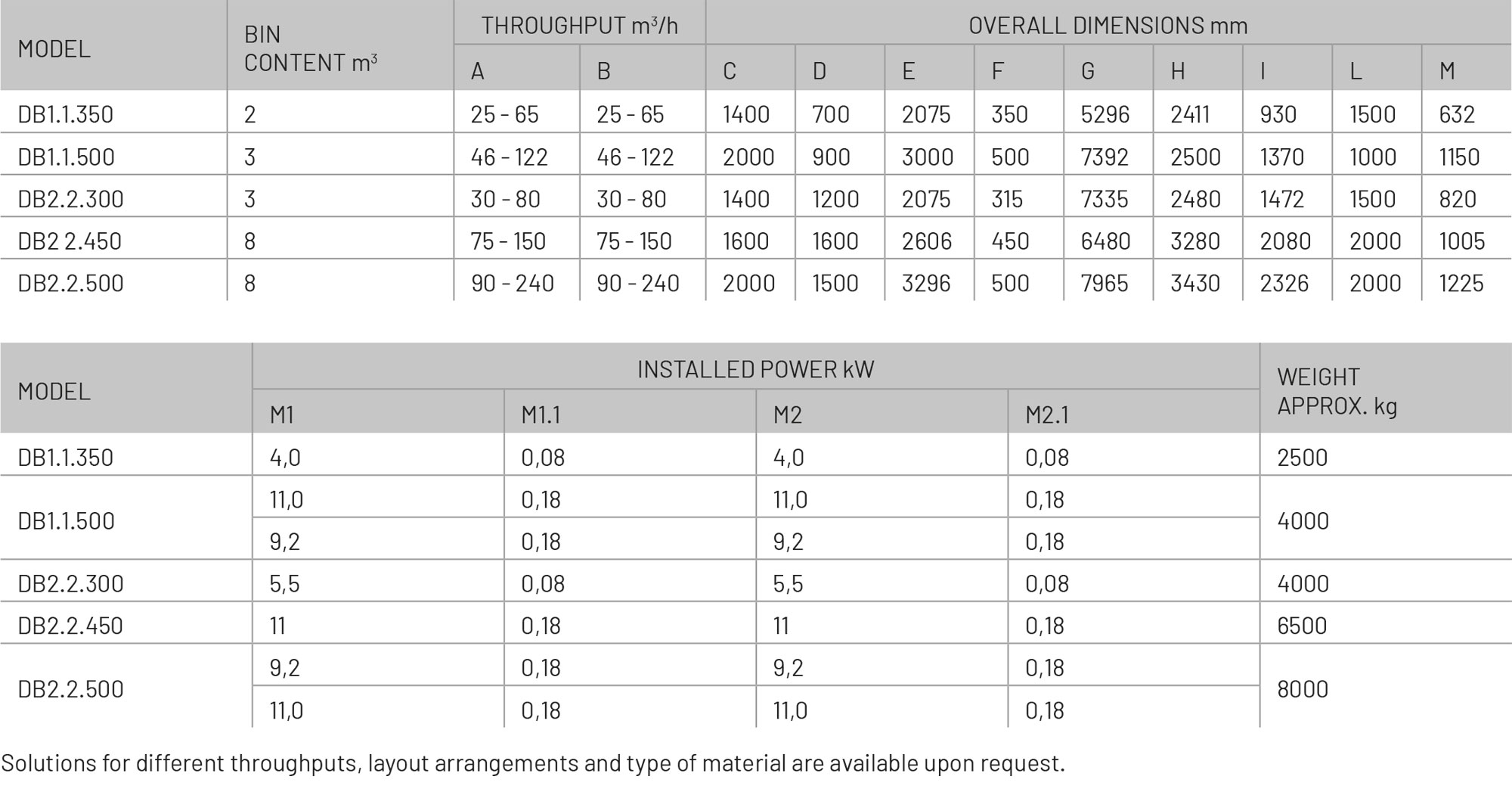

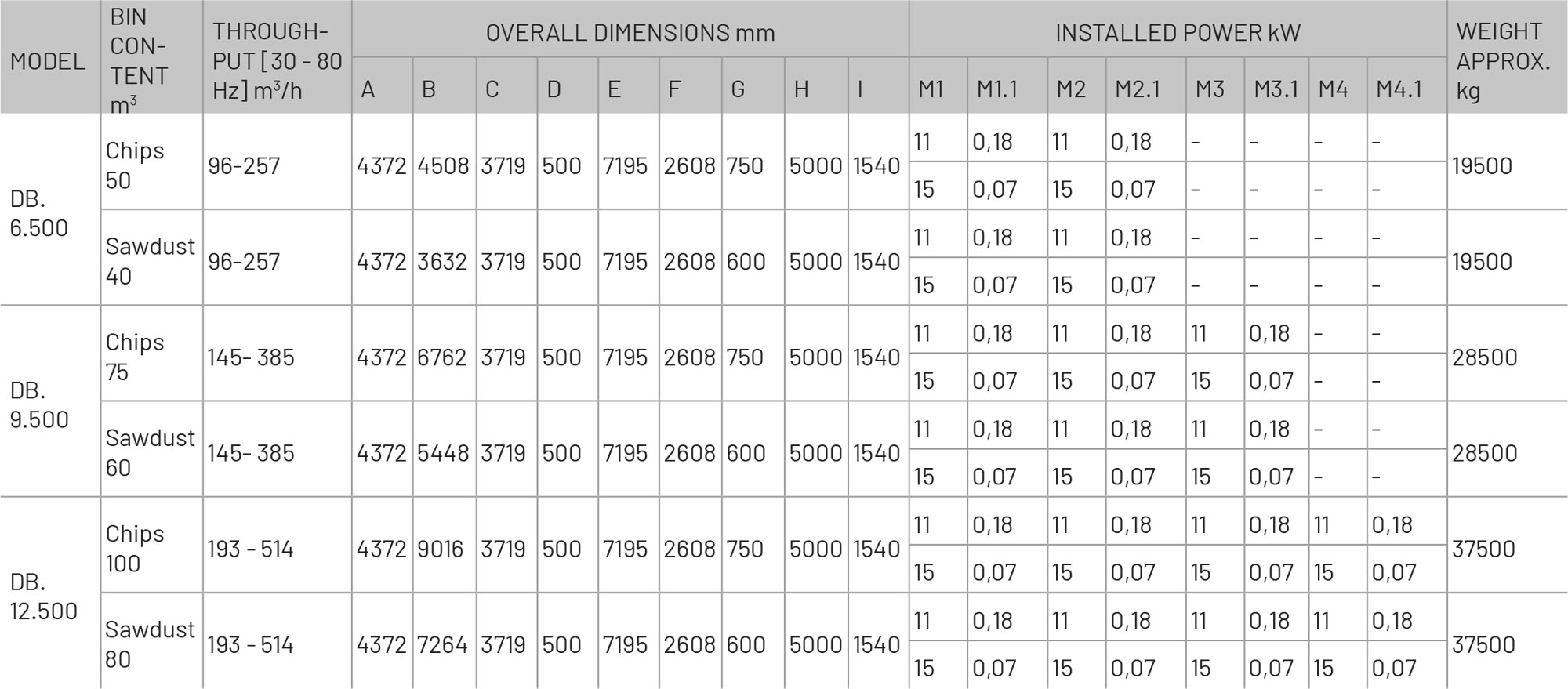

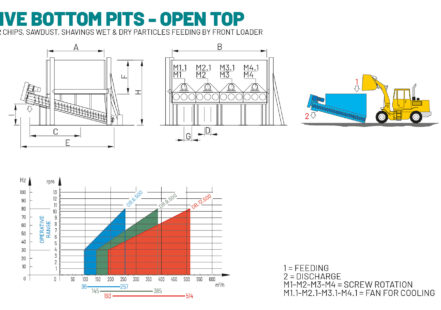

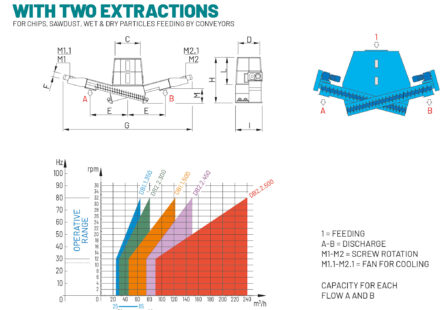

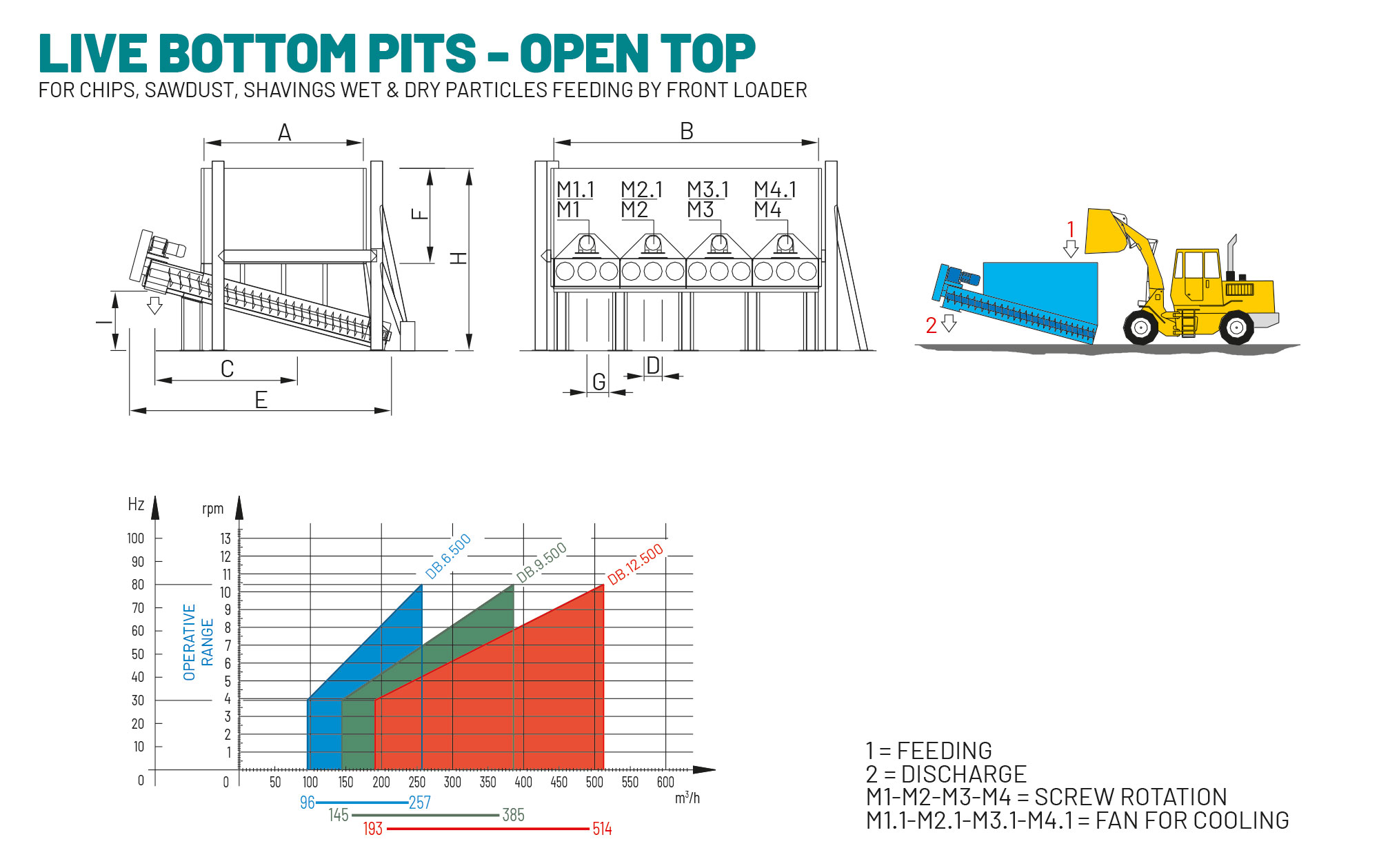

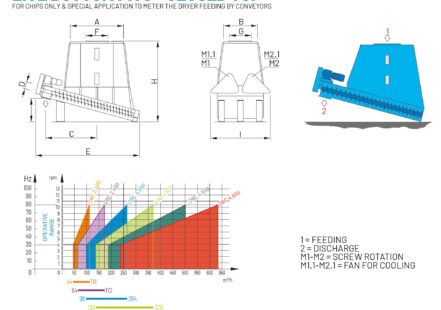

Versatile storage-dosing live bottom pits: DB.6-9-12 with open-top for feeding with front loader – DBC.4 closed execution for metering of chips – DBD.4 special application for metering of Driers – DB1.1 & 2.2 for simultaneous metering of two downstream
Destorage system based on live bed made up of modules of two or three dosing screws (parallel or opposed construction)
Separate drive for each series of dosing screws • Level controls.
BENEFITS
Storage-dosing of fractioned materials, wet or dry, such as chips, sawdust, shavings, particles, etc.
Accurate dosing of several downstream machines, e.g.: roll screens – cleaners or sifters for chips, sawdust and shavings – knife ring flakers – hammermills – driers – dry screens – dry mills
No bridge formation
No material demixing
Wide range of extraction capacity: running the dosing screw modules separately, alternatively or all together – driving each motor with a frequency converter
High dosing accuracy from progressive pitch screws
