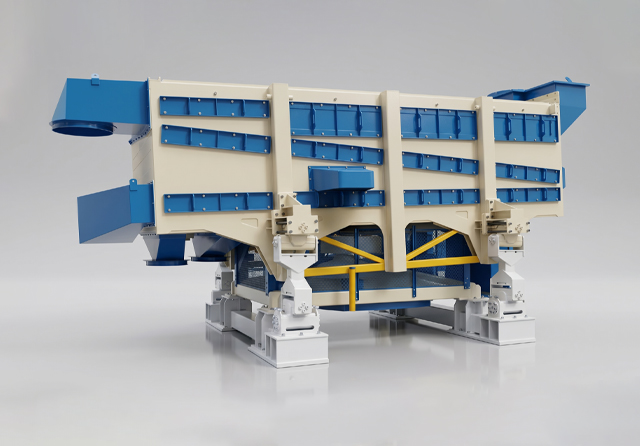

MULTICROSS 41-52

Multicross 41-52 is a oscillating screen designed to select the processed material dividing it according to the various sizes. The material to be sieved is introduced into an inclined box, which oscillate in the horizontal plane due to rotation of an eccentric mass.

Proudly made by

Best in class for

WOOD BASED PANELS

PB/SPB, MDF/HDF, OSB/LSB/FOSB

PRESSED WOOD PACKAGING

PALLET BLOCKS

PELLET & ENERGY

WOOD PELLETS AND BLACK PELLETS, THERMAL AND ELECTRIC ENERGY

WOOD RECYCLING AND WASTE TREATMENT

CUSTOMIZED SOLUTIONS FOR RECYCLING

Technical features

Robust and rigid supporting pyramids
High precision kinematics
Excellent elastic suspensions
High tech screening boxes assembled with high-quality materials and made with special tried and tested procedures
1-2-4 Stage screens
1-4 Screening decks per stage
2-5 Fractions available
Stainless steel sieves and frames
Auto-cleaning system based on bouncing balls
Fire-extinguishing system
Explosion vents
Extensive eccentric oscillation
Perfect balancing!

Benefits

Perfect-absolute classification of any fraction
Quick and easy replacement of the screening frames
Unbeatable performance, efficiency and reliability
36 months mechanical warranty!

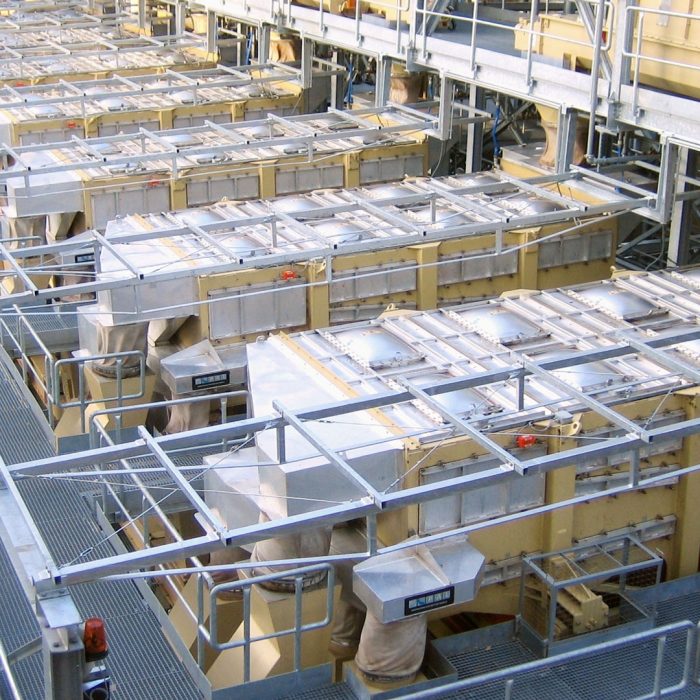

Gallery

Technical features

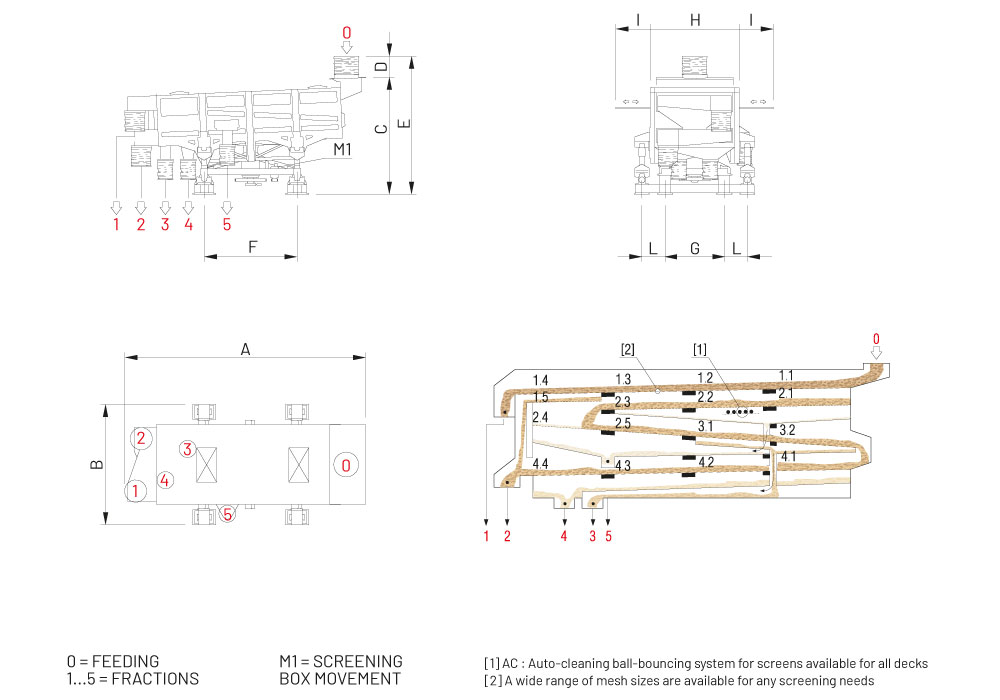

MODEL	OVERALL DIMENSIONS mm										INSTALLED POWER kW	WEIGHT APPROX. kg
MODEL	A	B	C	D	E	F	G	H	I	L	M1	WEIGHT APPROX. kg
MULTICROSS 41-EJ	7730	3860	3830	600	4430	2980	1900	2560	1250	740	11	16600
MULTICROSS 52-EJ	7850	4300	3830	600	4430	3980	1900	3000	1500	960	15	17700
